Pool Waterline Tile Replacement & Upgrade
Signs Your Waterline Tile Needs Replacing
Waterline tile naturally accumulates calcium scale, scum line stains, and UV fading over years. Beyond appearance, failing grout and cracked tiles allow water to reach the bond beam — creating the same structural risk as bad coping.
Cracked or Missing Tiles
Individual cracked tiles are a cosmetic issue at first, but missing tiles expose the bond beam to water and should be addressed promptly.
Calcium Scale Buildup
White or grey calcium deposits along the waterline indicate hard water scaling. Once scale embeds into grout it is very difficult to remove without replacement.
Faded Color or Glaze
UV exposure and pool chemicals degrade tile glaze over time, leaving a dull, chalky finish that no amount of cleaning can restore.
Failed Grout
Grout that is cracking, crumbling, or discolored allows water infiltration behind the tile and should be replaced before it reaches the bond beam.
Outdated Style
Older pools often feature small blue ceramic tiles that feel dated. Replacing with large-format glass mosaic or modern porcelain instantly modernizes the pool's look.
Renovation Timing
Waterline tile is almost always replaced during a full replaster — the pool is already drained and the bond beam is accessible, making the pairing efficient.
Tile Options — From Classic to Statement
The waterline tile band is typically 6 inches tall (one tile row) at original installation, though renovations often expand this to 12 inches for a bolder look. Here’s what we offer:

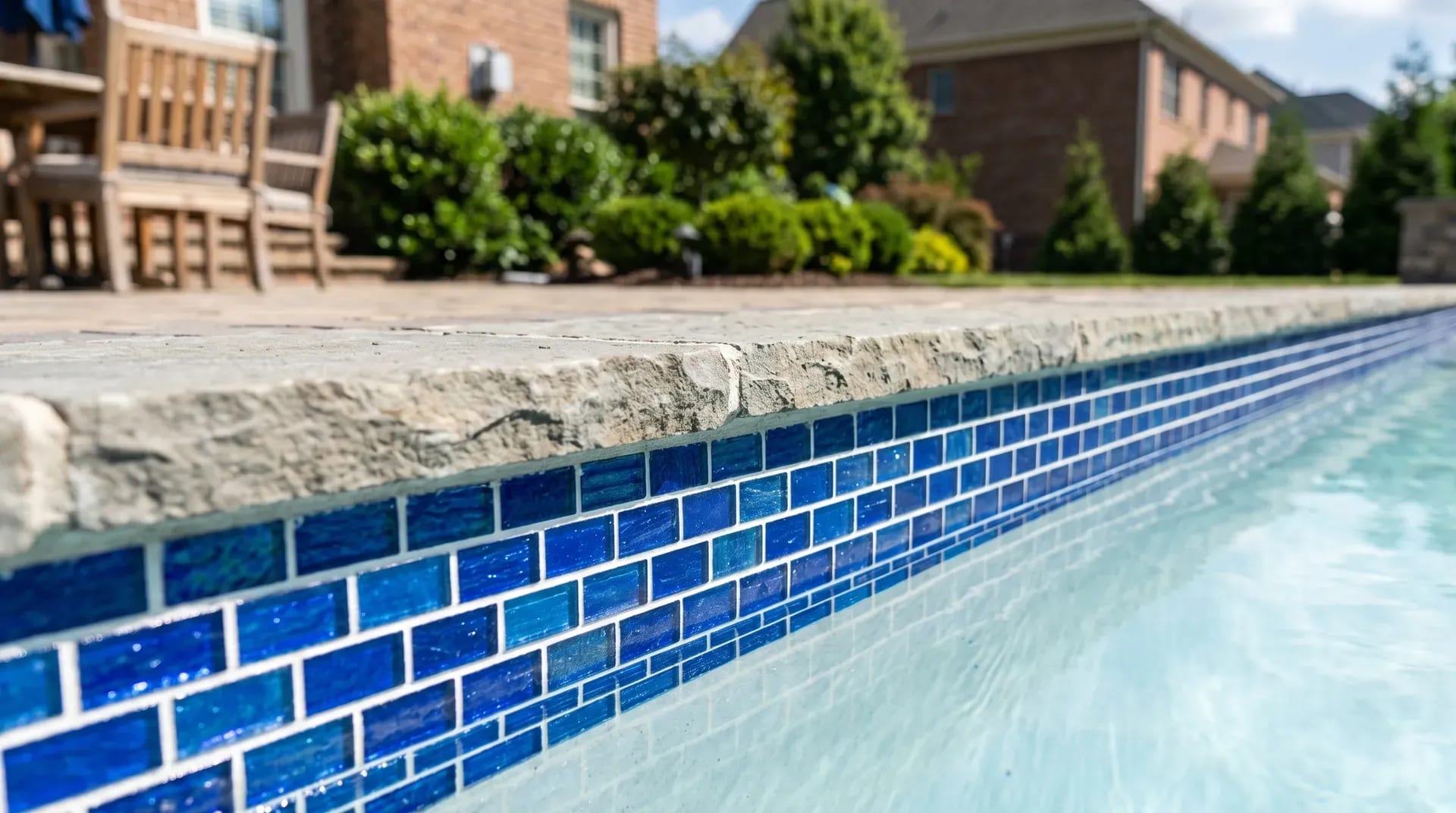

Glass Mosaic
The most popular premium choice. Reflects light beautifully underwater. Highly stain- and scale-resistant. Wide color palette — from deep navy to iridescent white.
Ceramic
Durable, affordable, and extremely easy to match for partial replacements. Available in solid colors, patterns, and simulated stone finishes.
Porcelain
Lower porosity than ceramic — resists calcium scale better. Available in stone-look, wood-look, and solid finishes. Excellent for contemporary pool designs.
Stone-Look or Natural Stone Tile
Travertine, slate, or quartzite-look tiles that complement natural stone decks and coping. Requires sealing. Best paired with matching coping material.
Cost ranges reflect DMV-area market rates as of 2025. Prices vary by tile selection, bond beam condition, and linear footage.
How Waterline Tile Replacement Works

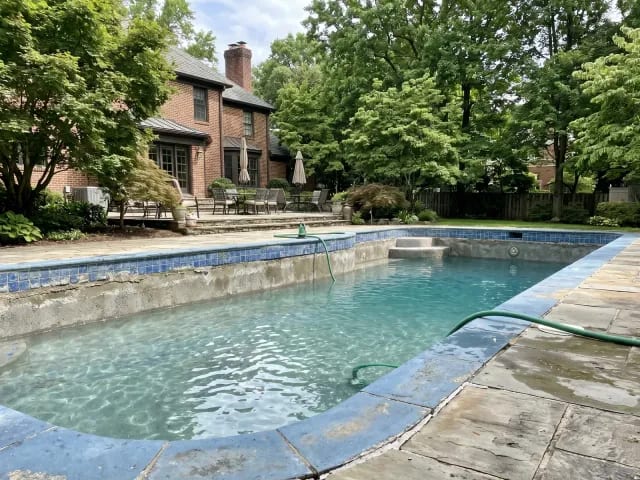

Partial drain
The pool is lowered 6–12 inches below the tile band — not fully drained. This exposes the bond beam and tile while keeping the pool structurally stable.

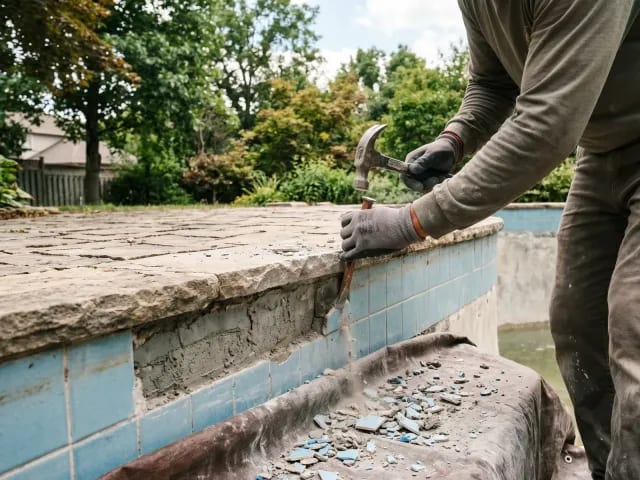

Tile removal
Existing tile is chiseled or ground off the bond beam. The surface is cleaned and profiled for bonding. Any bond beam cracks found here are repaired before tiling begins.

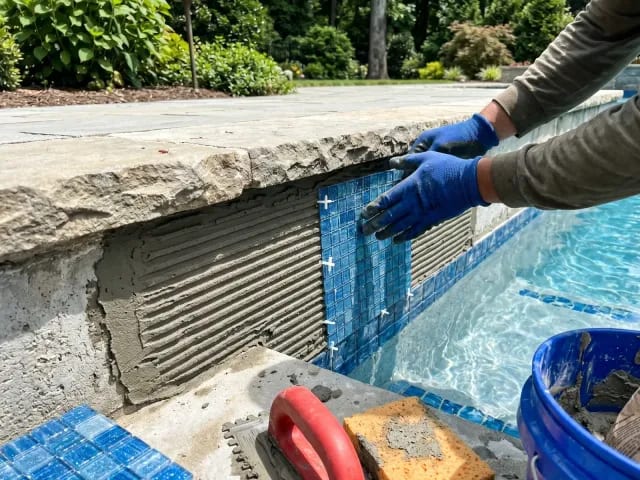

Setting new tile
New tile is set in polymer-modified thinset, aligned at the correct height, and pressed firmly into the substrate. Mosaic sheets are typically done in sections.

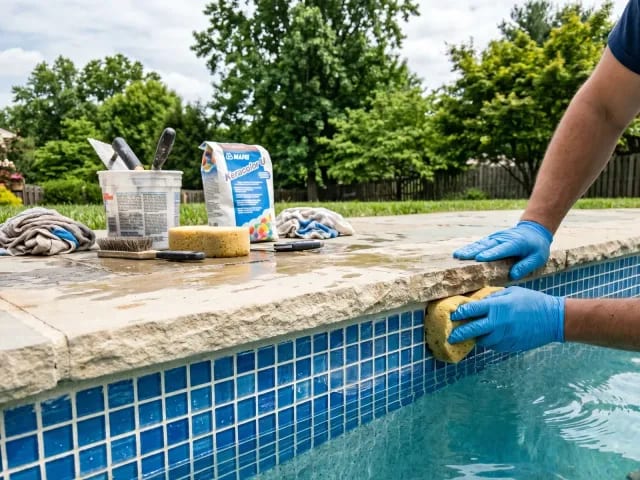

Grouting & cure
Grout is applied once the thinset has cured (typically 24 hours). The pool must remain at partial-drain level for 24–48 hours of grout cure before it can be refilled.

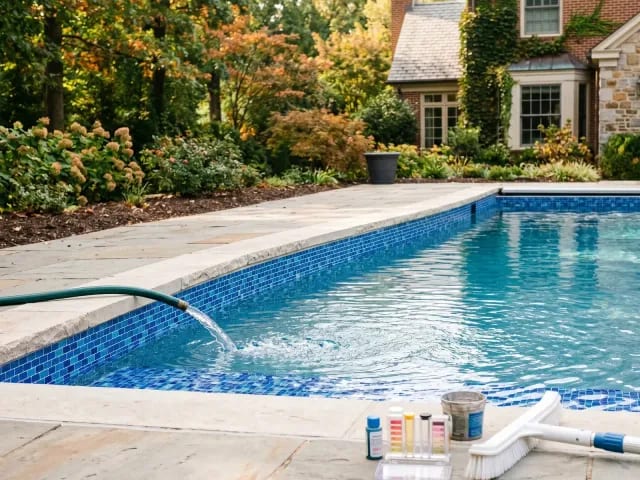

Refill & balance
The pool is refilled and chemicals are balanced. Most waterline tile jobs have the pool swim-ready within 5–7 days from start.
Can I Replace Just a Few Broken Tiles?
Yes — partial replacement is technically possible, but matching matters:
- Ceramic:Standard colors (white, beige, blue) are easy to match. If your tile is a common format, a spot repair is often the right call and very affordable.
- Glass mosaic:Glass tile colors vary by batch. If the original tile is discontinued or the lot is unavailable, patches will be visibly mismatched — full-band replacement is often recommended.
- Porcelain / stone:Same-tile availability varies. Bring a sample to your consultation and we’ll check current stock before recommending partial or full replacement.
If you’re unsure, bring a photo of the tile band. We can usually assess matchability in the first visit.
Best Time to Replace Tile
Waterline tile replacement is most efficient during a resurfacing project — the pool is already drained and crews are already on-site. If you’re resurfacing, replacing the tile at the same time adds relatively little cost and eliminates a second drain-down in the future.
What Happens When Cracked Tile Is Left Alone
Waterline tile protects the bond beam — the structural concrete ring at the top of your pool shell. When tile cracks, chips, or grout fails, water gains a direct path to that beam.
Stage 1: Tile cracks or grout fails
Water begins infiltrating the tile-to-shell joint. At this point the damage is cosmetic and a repair or replacement is straightforward and affordable.
Low — fix now, cost is minimal
Stage 2: Bond beam water exposure
Repeated wetting and drying of the exposed bond beam causes efflorescence and begins to degrade the concrete. Freeze-thaw cycles accelerate cracking in the concrete itself.
Moderate — cost is rising
Stage 3: Structural bond beam damage
The bond beam develops cracks and begins to spall. Repair now requires removing all affected tile, patching the concrete, and replastering the surrounding area — a major renovation scope.
High — significantly more expensive
If you’ve noticed cracked, missing, or heavily scaled tile, schedule an inspection — the earlier the repair, the less expensive the outcome.
Pair it with
Best done alongside plaster resurfacing
Waterline tile and plaster resurfacing share the same drain, dry-out, and refill cycle. Scheduling both together saves several days of downtime and reduces total project cost.
Related Services
Pool Resurfacing →
Tile replacement is almost always done during a replaster — the pool is already drained and timed perfectly.
Coping Replacement →
Tile and coping are the two most visible renovation elements — upgrading both creates a cohesive result.
Pool Deck Restoration →
A complete pool surround renovation covers tile, coping, and the surrounding deck in one unified project.
What Our Customers Say
February 2025
“I had been searching for a new company for my weekly pool maintenance when I came across Beltway Pools, and I'm so glad I did. Sandra has been managing our pool's opening and weekly maintenance, and her attention to detail and expertise are truly outstanding. She has been incredibly patient with all my questions and maintains a friendly and professional demeanor at all times. Thanks to Sandra and her maintenance team, our pool is exceptionally clean and well-maintained. I cannot recommend Beltway Pools enough!”
May 2025
“Beltway Pools saved us when our pool was leaking. The team was quick to diagnose the issue, and Dragan made sure everything was fixed properly. The repair process was smooth and efficient.”
January 2026
“Rob was fantastic at always keeping up communication and walking us through each step of the process for our pool renovation. The pool turned out fantastic and his team made sure all of my questions/concerns were addressed. Couldn’t be happier! Services Swimming pool crack repair, Swimming pool resurfacing, Swimming pool tile repair, Swimming pool equipment repair”
Areas We Serve
Serving homeowners across Northern Virginia, Maryland & Washington, DC.
View all service areasWaterline Tile Replacement — Frequently Asked Questions
How much does waterline tile replacement cost?
Waterline tile replacement in the DMV area typically costs $3,500–$12,000 for standard residential pools, depending on tile material, tile size, linear footage of tile band, and the condition of the existing setting bed. Premium glass or mosaic tiles are at the higher end of this range. The project requires draining the pool to expose the tile band, and the cost typically includes drain, prep, tile installation, grouting, and refill. Contact us for an accurate estimate for your pool size and tile preference.
What types of tile are best for pool waterline applications?
Waterline tile must withstand continuous water contact, freeze-thaw cycles, and pool chemicals. The most suitable options:
- Porcelain tile — highly durable, frost-resistant, low absorption rate; our most recommended choice for DMV pools due to its performance in freeze-thaw conditions
- Glass tile — visually stunning, non-porous, highly chemical-resistant; slightly more susceptible to thermal shock than porcelain if improperly set, but excellent when installed correctly
- Stone-look porcelain — combines the aesthetics of natural stone with the performance of porcelain; handles the DMV climate well
- Natural stone — beautiful in appearance but requires sealing and careful maintenance; more porous than porcelain or glass
We advise against standard ceramic tile or unrated materials — frost ratings and pool-specific grout selection are critical in this climate.
How do I know if my waterline tile needs to be replaced?
Signs your waterline tile is due for replacement:
- Loose or hollow tiles — tap individual tiles; a hollow sound means the bonding behind the tile has failed
- Falling tiles — tiles that have already separated from the wall; the bonding failure will spread to neighboring tiles if not addressed
- Cracked grout — deteriorating grout allows water in behind the tile, accelerating bond failure (especially in freeze-thaw cycles)
- Persistent calcium deposits or scaling that doesn't respond to chemical treatment or acid washing
- Visual wear or fading that makes the pool look dated
We inspect waterline tile condition during every comprehensive pool inspection.
Does waterline tile work require draining the pool?
Yes — waterline tile replacement requires draining the pool to at least 12–18 inches below the tile band so the tile setting surface can be properly prepared and the new tile can be installed in dry conditions. The drain-and-refill process is included in our waterline tile project pricing. In most DMV homes, draining a typical residential pool takes 6–12 hours and refilling takes 12–24 hours depending on water supply flow rate. Water chemistry is fully balanced and tested before we sign off on the project.
